Headphone Amp  - $1198.00

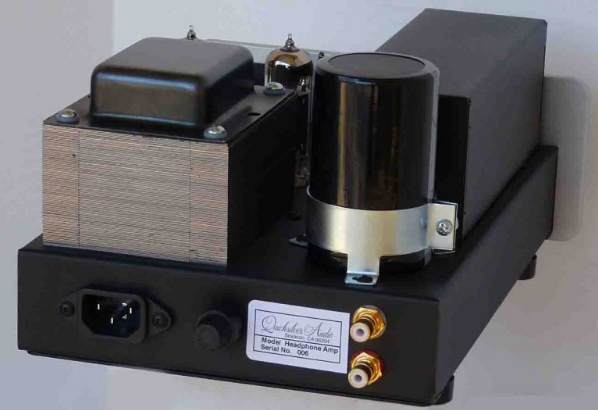

The new Quicksilver Headphone Amp will drive any headphone to very loud levels and uses no circuit boards or transistors. It is completely point to point handwired and the only components in each channel signal path are 2 tubes, an Alps volume control, 1 capacitor and 1 output transformer.

Specifications:

Output  Type           transformer coupled single ended class A triode

Input  Impedance    100 Kohms

Output Impedance   2.2 ohms

Gain                       24db

Power Consumption 38 watts

Input Sensitivity     1.5 volts

Input Impedance    100 K ohms

Tube Complement  2-12AX7 driver

                            8-6BQ5 (EL84) outputs

Max Output           7 volts rms into 30 ohms or higher load

Polarity                    Non inverting

Distortion                 less than .01% at 1khz into 30 ohms or higher load

Finish                   Carbide Black chassis


Dimensions          6"H x 11"D x 15"W
